Walk Behind Diamond Blades

Walk Behind Diamond Blades
Walk Behind Diamond Blades Walk Behind Diamond Blades

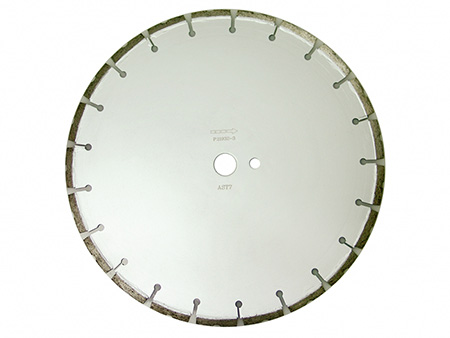

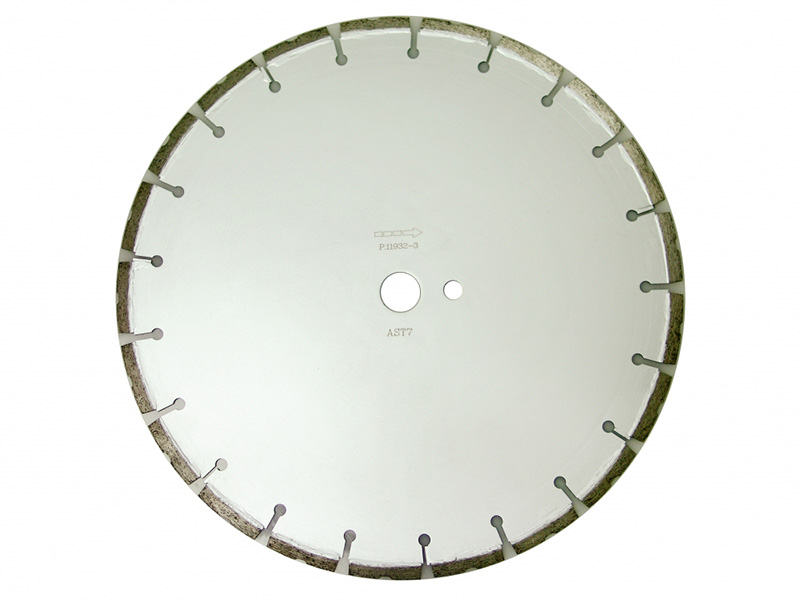

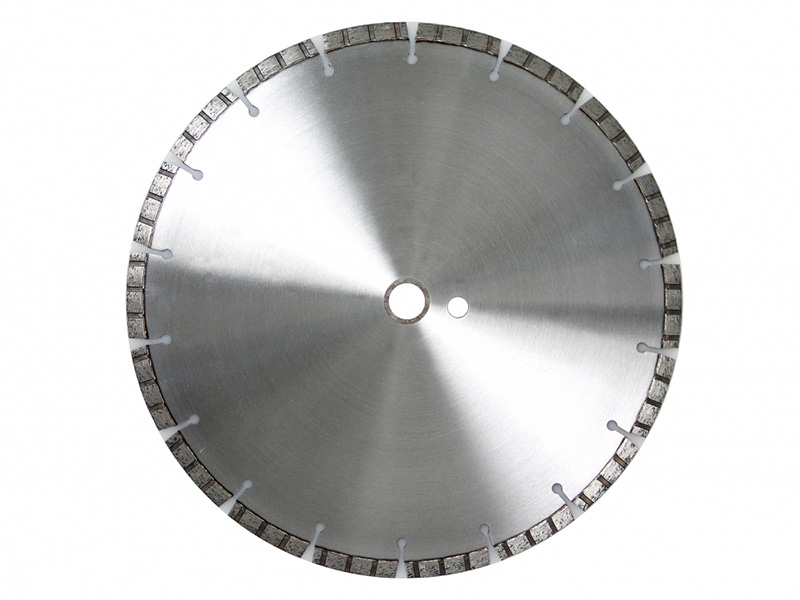

Walk behind diamond blades are mainly applied for cutting and grooving on road surfaces. The blade is specially designed for cutting reinforced concrete, special protection is applied to prevent blade damage and gain better durability. Our walk behind saw blades are suitable with various road grooving machines, features good durability and low cost.

Parameter
Code Metal Core Segment
Diameter Length Thickness Height
WBHS2001-12-120 12〃 0.120〃(3.0mm) 8/10mm 20-1〃
WBHS2001-12-125 12〃 0.125〃(3.2mm) 8/10mm 20-1〃
WBHS2001-14-125 14〃 0.125〃(3.2mm) 8/10mm 20-1〃
WBHS2001-16-140 16〃 0.140〃(3.6mm) 8/10mm 1〃
WBHS2001-18-155 18〃 0.155〃(4.0mm) 8/10mm 1〃
WBHS2001-20-175 20〃 0.175〃(4.4mm) 8/10mm 1〃
WBHS2001-24-187 24〃 0.187〃(4.8mm) 8/10mm 1〃
